Heads & Fittings
Vanode Hex Head Fittings
Vanode Hex Head fittings are available in several standard configurations, as shown in the following chart. In addition, Hex Head fittings can be fabricated to specification for various customized applications.
| Size Across Flats | External Thread Size | Use w/ Rod Size |
|---|---|---|
| 7/8" | 1/2" NPT | 0.675" |
| 1 1/16" | 3/4" NPT | 0.750", 0.840" |
| 1 3/8" | 1" NPT | 1.050" |
| 1 3/4" | 1 1/4" NPT | 1.315" |
| 2 3/4" | 2" NPT | 2.024" |

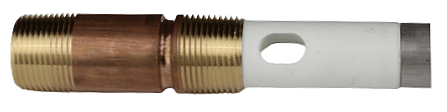

Water Heater Outlet Fittings
Water heater outlet fittings are available in multiple configurations. These fittings are used for applications where the anode rod is attached to the water heater hot water outlet.
Vanode Custom Fittings
Vanode can fabricate custom fittings for your particular application. We have designed fittings in a variety of configurations and finishes for specialized cathodic protection applications. If you have questions about fittings or want to get a custom quote for your particular corrosion protection need, please contact us at 626-961-0387, or email us at info@vanodeco.com.
